Digi IX30 Industrial Cellular Router

Intelligent 4G LTE router designed for critical infrastructure and industrial applications


  • Global LTE and HSPA+ support and certification on major carrier networks around the world
  • Ethernet, serial I/O and Modbus bridging
  • Low-power feature can be easily configured for remote and off-grid applications
  • Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
  • Dedicated GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
  • License-free enterprise software: VPN, firewall, logging and authentication
  • Digi Remote Manager® platform for easy setup, mass configuration and management
  • Rugged enclosure, optimized for DIN rail or shelf mounting
  • C1D2 and ATEX rated; NEMA TS2 temperature rated
  • Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover

Digi IX30 is an intelligent 4G LTE router designed for optimal performance and reliability across a wide range of critical infrastructure and industrial applications. This complete solution is fully integrated with software and security, providing a secure, reliable connection to industrial controllers, process automation equipment and smart grid assets on third party sites or remote locations.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and visibility into the health of your network, whether you deploy dozens or thousands of devices.

In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

Software-defined, multi-carrier networking and global LTE and HSPA+ options make it easy to get connected. This drop-in connectivity gives operators a way to reduce downtime and service calls, and also increase revenue by bringing distributed sites online faster. With its hardened components and low-power feature, it can be configured and installed anywhere — in the harshest conditions, and in applications where power is limited or unavailable.

The Digi IX30 router also offers a FirstNet Capable™ LTE-Advanced model designed to meet the critical demands for emergency communications. Additional industrial use case applications include building and process automation controllers, IP cameras and access controllers, remote data loggers, flow meters, sensing equipment, telco infrastructure, and traffic and obstruction lighting.

Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More


Compare Industrial Routers

Compare Industrial Routers
Digi WAN Bonding
FirstNet Capable LTE-Advanced Cat 7
IX30-00P7 Digi IX30 — FirstNet Capable LTE-Advanced Cat 7
  • LTE-Advanced Cat 7 North America
  • FirstNet Capable™
  • Dual Ethernet
  • RS-232/422/485
  • GNSS
IX30-00P7 How to Buy
LTE Cat 4
IX30-00G4 Digi IX30 — LTE Cat 4 Global
  • LTE Cat 4 Global
  • 3G/2G fallback
  • Dual Ethernet
  • RS-232/422/485
  • GNSS
IX30-00G4 How to Buy
IX30-00A4 Digi IX30 — LTE Cat 4 AU
  • LTE Cat 4 AU
  • 3G/2G fallback
  • Dual Ethernet
  • RS-232/422/485
  • GNSS
IX30-00A4 How to Buy
Available Accessories
SKU: 76002113 Digi IX30 Accessory Kit — PSU, antennas, Cat 6 Ethernet cable, GPS antenna 76002113 How to Buy
SKU: 76002104 Industrial extended temperature power supply with plug tips for US, UK, EU, AU; -20° to 70° C (-4° to 158° F) 76002104 How to Buy
76002117 Commercial temperature power supply with plug tips for US, UK, EU, AU; 0° to 40° C (32° to 104° F) 76002117 How to Buy
SKU: 76002114 Cellular antenna — 5G/LTE 600 MHz to 6 GHz, swivel, black 76002114 How to Buy
76000954 Magnetic GNSS antenna base – SMA, 1 m, RG174 76000954 How to Buy
SKU: 76002106 Ethernet cable - 2 m (6 ft) 76002106 How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections
  Get Started
SPECIFICATIONS Digi IX30
WIRELESS INTERFACES
CELLULAR
CERTIFICATIONS Visit https://www.digi.com/resources/certifications for latest certifications
FIRSTNET CAPABLE™ LTE-ADVANCED CAT 7 LTE-Advanced Cat 7 — FDD: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B66, B71; TDD: B41, B42, B43, B48;
WCDMA: B2, B4, B5;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
LTE CAT 4 GLOBAL (SELECT REGIONS/CARRIERS*) LTE Cat 4 — FDD: B1, B2, B3, B4, B5, B7, B12, B13, B18, B19, B20, B25, B26, B28; TDD: B38, B39, B40, B41; WCDMA: B1, B2, B4, B5, B6, B8, B19;
GSM: B2, B3, B5, B8;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
LTE CAT 4 AU/NZ LTE Cat 4 — FDD: B1, B3, B5, B7, B8, B18, B19, B21, B28; TDD: B38, B39, B40, B41;
3G: B1, B5, B6, B8, B9, B19;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
CONNECTORS (3) 50 Ω SMA (2x cellular, 1x GNSS);  center pin: female
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Screw-down SIM cover
GNSS Protocol NMEA 0183 V3.0
Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s
Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
SOFTWARE & MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH, Serial)
MANAGEMENT/ TROUBLESHOOTING TOOLS FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
WIRED INTERFACES
ETHERNET
PORTS (2) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) DB-9; DCE
STANDARD RS-232/422/485
SIGNAL SUPPORT TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
FLOW CONTROL Software (XON/XOFF), hardware supported
I/O
CONNECTOR 12-pin screw down terminal block
DIGITAL 0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input
ANALOG (4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution
USB
PORTS (1) USB 2.0 Type A; 5 V 500 mA max
PHYSICAL
DIMENSIONS (L X W X H) 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in)
WEIGHT 0.5 kg (1.1 lb)
STATUS LEDS Signal Strength (5), LTE, Power
ENCLOSURE/RATING Aluminum / IP30
MOUNTING DIN rail mount
POWER REQUIREMENTS
POWER INPUT 9 – 30 VDC, 18 W min power source required
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 1.5 W (light traffic flow), 3.5 W (peak data transmission); 1 W (low power mode, idle traffic, no serial/no Ethernet WAN)
ENVIRONMENTAL
HAZARDOUS (CLASS 1 DIV 2) Yes
OPERATING TEMPERATURE −34 °C to 74 °C (−29 °F to 165 °F); reduced cellular performance may occur above 60 °C (140 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
ETHERNET ISOLATION 1.5 kV RMS
SERIAL PORT PROTECTION (ESD) 15 kV
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR IX30-00P7: PTCRB, Verizon, T-Mobile, AT&T, FirstNet Capable™; IX30-00G4: CE, RED, UKCA;
visit https://www.digi.com/resources/certifications for latest cellular certifications
SAFETY Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15;
Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition;
ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc;
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
IECEX STANDARDS US/UL/ExTR17.0077/00
EMISSIONS/IMMUNITY CE, RED, FCC Part 15 Class B, ICES-003, AS/NZS CISPR 32
ENVIRONMENTAL RoHS3
WARRANTY
PRODUCT WARRANTY 3-year**
*Visit https://www.digi.com/resources/certifications for latest cellular certifications.
**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

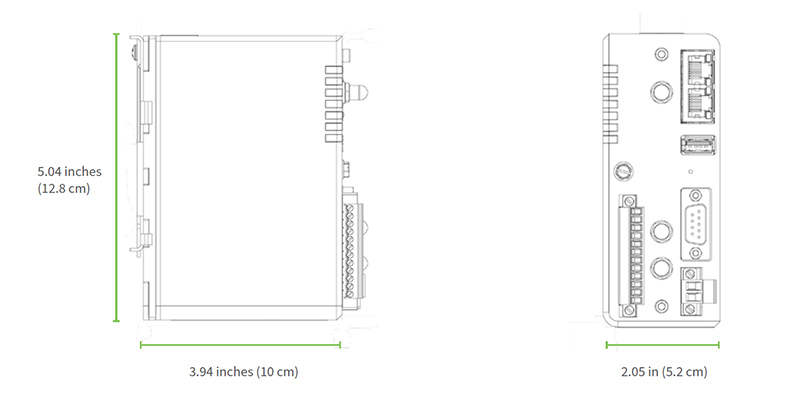

Digi IX30 line art

ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, TLS, SCP (client and server), SFTP, SNMP (v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS,Dynamic DNS client compatible with BIND9/No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSLv3, FIPS 197, Open VPN client and server; L2TP; VPN tunnels; cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN; Digi SureLink®
OTHER PROTOCOLS DHCP; Dynamic DNS client compatible with No-IP/DynDNS; QoS via TOS/DSCP; Modbus UDP/TCP to serial; Modbus bridging for connecting diverse field assets
